Stainless Steel Handrail / Capping Cover for Glass Balustrade -304 Stainless Steel Cover for 10mm Toughened Glass 0.74kN / 1.5kN / 3.0kN 2.5m Lengths

Stainless Steel Handrail /Capping Cover for Glass Balustrade -304 Stainless Steel Cover for 10mm Toughened Glass - clips / sits on top of the glass fixed with rubber inserts
• Optional add on is Grade 304 Stainless steel U shaped Channel / Capping / Handrail - clips / sits on top of the glass fixed with rubber inserts

[Stainless Steel cover plate] 304 Grade stainless  cover over heavy duty extruded aluminium extrusion suitable for interior & exterior use. 45mm w x 123mm h. for clean minimalistic finish, concealing ground fixings (fixings not supplied)  Note, for coastal / marine environments, 316 grade is recommended.

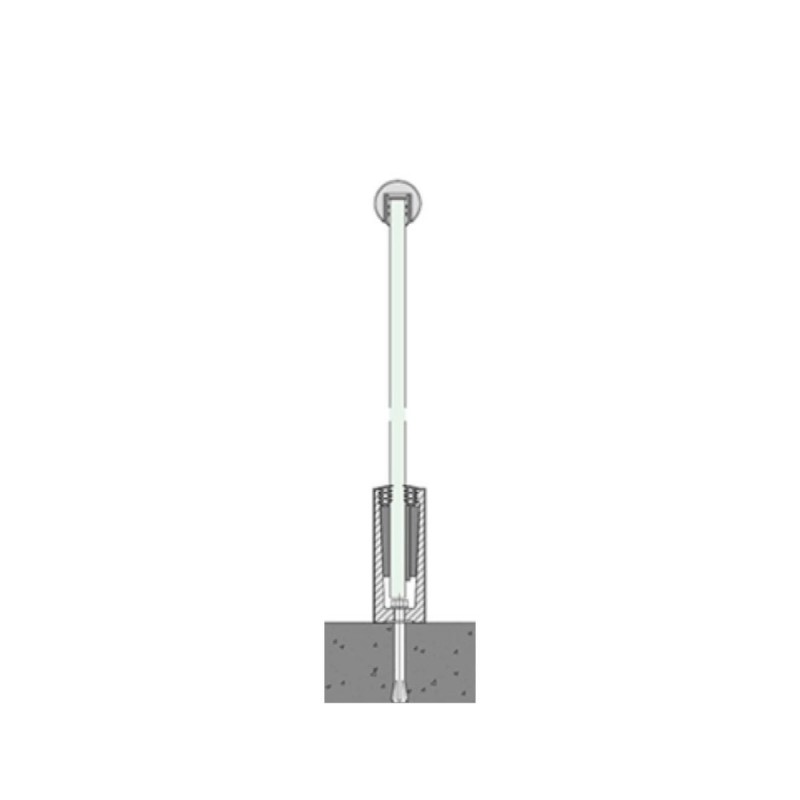

[Suits 10-16mm Toughened Glass] Low Iron Ultra Clear glass Toughened to BSEN 12150, Simply tighten hex grub screws to clamp down on the glass via rubber inserts to secure until firm. Suppled complete with all fixings.

[Wide range of sizes to suit virtually any length run] Glass sizes 1100mm High x 300mm, 600mm or 900mm wide allowing you to cover virtually any area with a combination of stock glass sizes - if you need a bespoke cut we can do it subject to a lead time

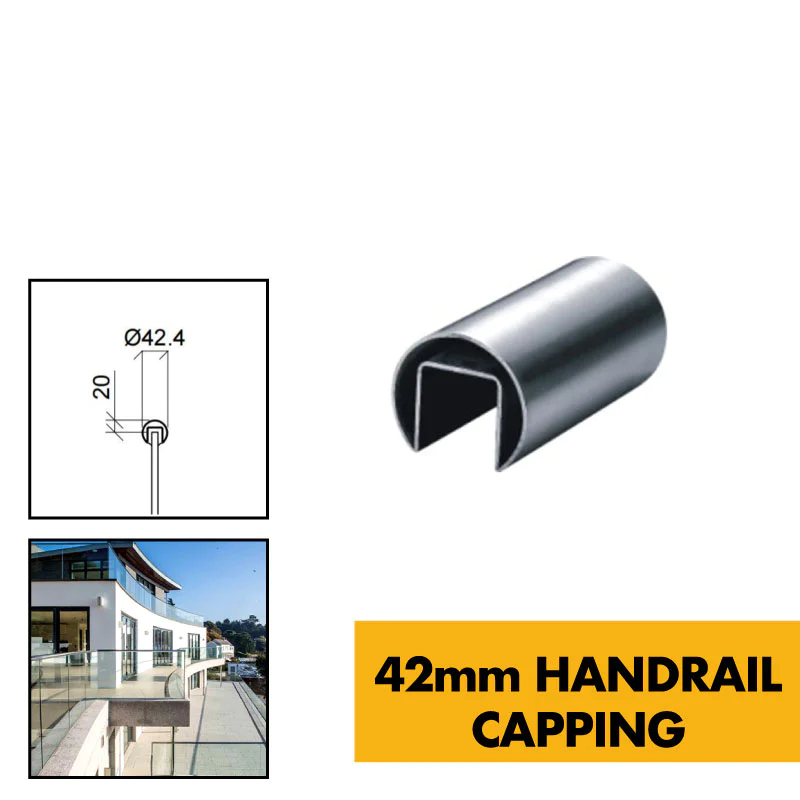

[Additional stainless steel handrail can be fitted to the top] U shaped channel handrail c/w rubbers can be fitted to the top of the glass to finish or for walk way areas

[Designed to 0.74kN/m according to BS6180:2011] suitable for for residential/domestic/home/office or areas not subject to overcrowding (Contact us for a quote for 1.5kN for areas where people may congregate/public walkways, retail, bars, restaurants etc under 3m or over 3.0kN for public/crowd loading areas over 3m wide ie. bars & Shopping malls, cinemas, sports arenas)

Emphasis is made on ensuring the stainless is well cleaned before 'hand over' as it is likely that the surface has been contaminated during storage, fabrication and transporting. This is true regardless of which grade of stainless is chosen. Where 'rust' has appeared on the surface which is called 'tea staining', a mild acid cleaner such as white vinegar or a specialist stainless steel cleaner can be applied with a microfibre cloth. This information should be passed onto the end user to help avoid any complaints after installation.

Note - Cover is Stainless steel and requires specific angle grinder cutting blade to cut.
