Toughened Glass for Balustrade 10mm/12mm/14mm/16mm - Laminated Safety Glass - Handrails 1100mm 0.74kN/M / 1.5kN/M / 3.0kN/M

Toughened Glass for Balustrade 10mm/12mm/14mm/16mm - Laminated Safety Glass - Handrails 1100mm 0.74kN/M / 1.5kN/M / 3.0kN/M

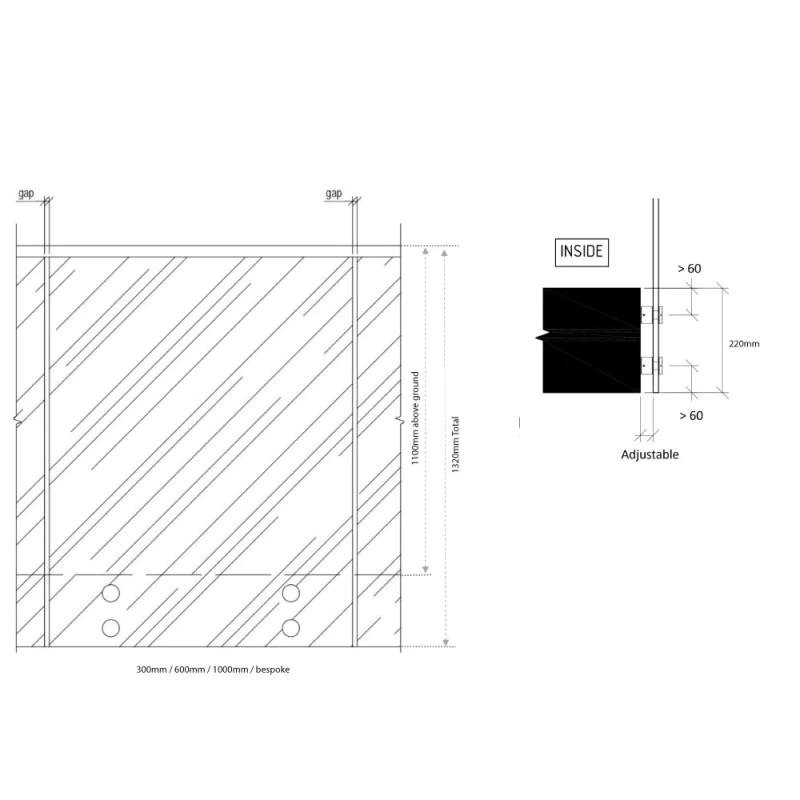

• Select from the drop down on the glass size: 300mm, 600mm, 1000mm w x 1100mm h (note if you order the glass for side fixing with stand offs / 4 pre-drilled holes, the glass height will be 1320mm h to allow for 220mm side fixing giving a to the perimeter and thus a finished height of the balustrade from floor level 1100mm - see drawing for details)

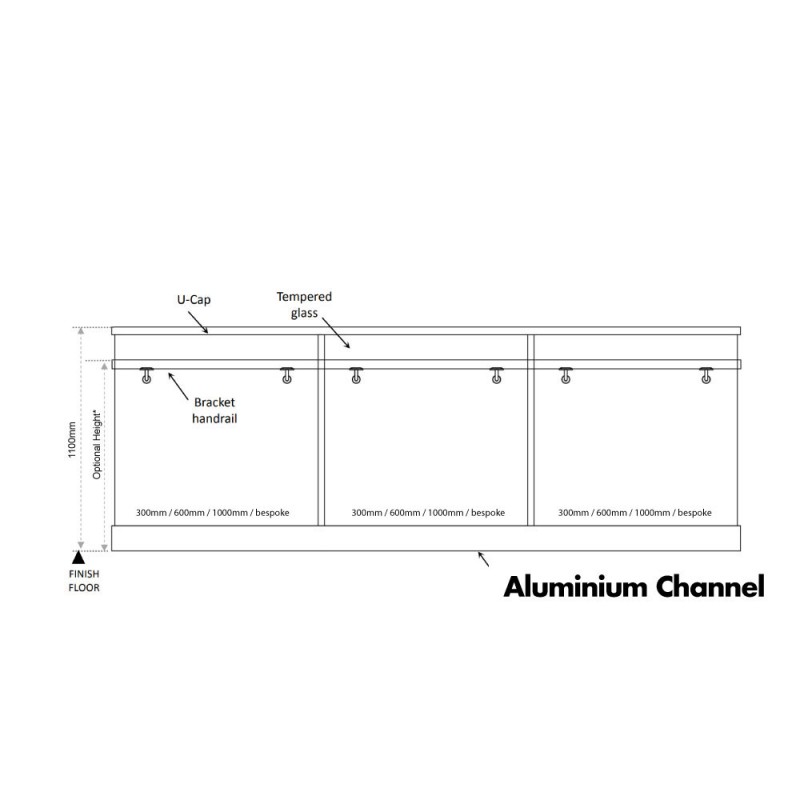

• Optional add on is Grade 304 Stainless steel U shaped Channel / Capping / Handrail - clips / sits on top of the glass fixed with rubber inserts

Designed to 0.74kN/m according to BS6180:2011 thus suitable for for residential/domestic/home/office or areas not subject to overcrowding

Contact us for a quote for 1.5kN for areas where people may congregate/public walkways, retail, bars, restaurants etc under 3m or over 3.0kN for public/crowd loading areas over 3m wide ie. bars & Shopping malls, cinemas, sports arenas

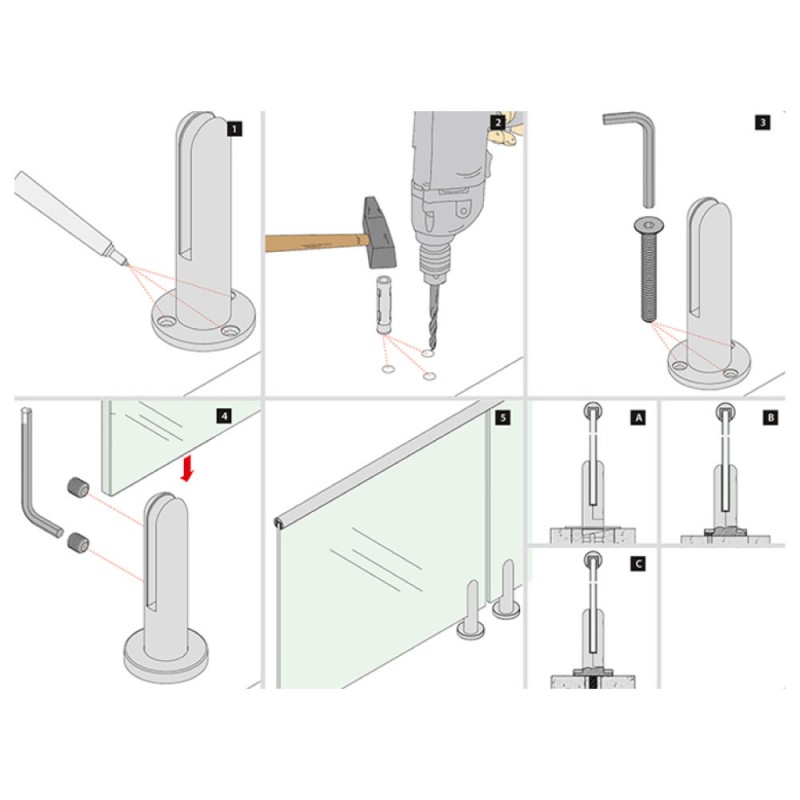

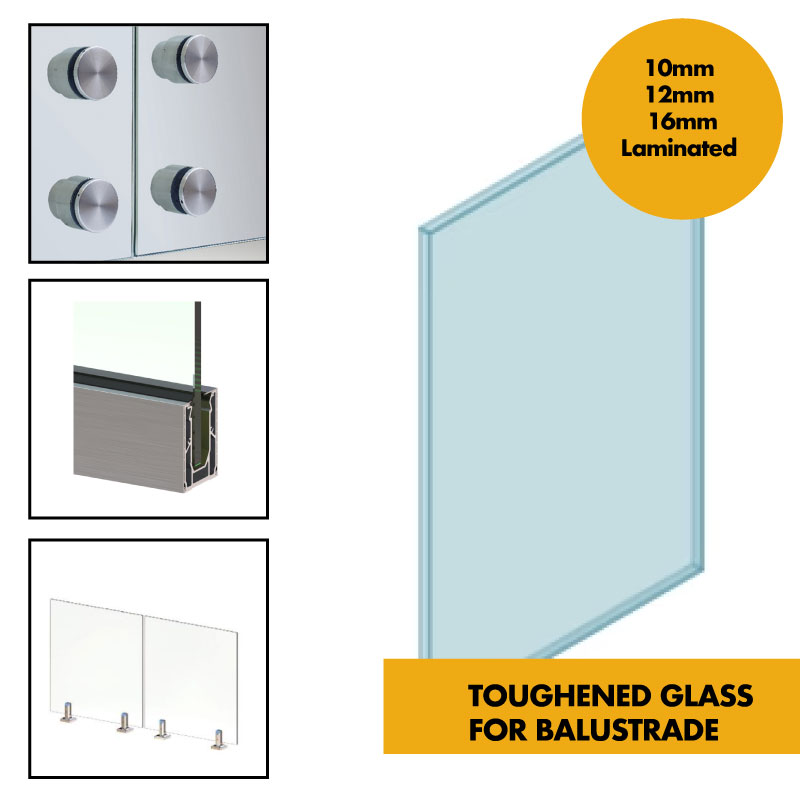

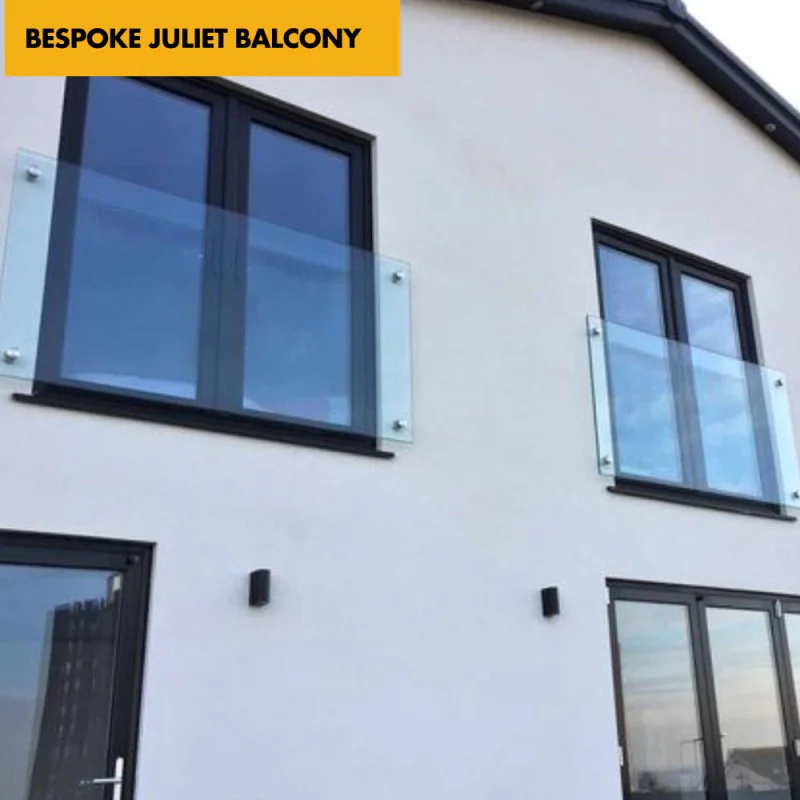

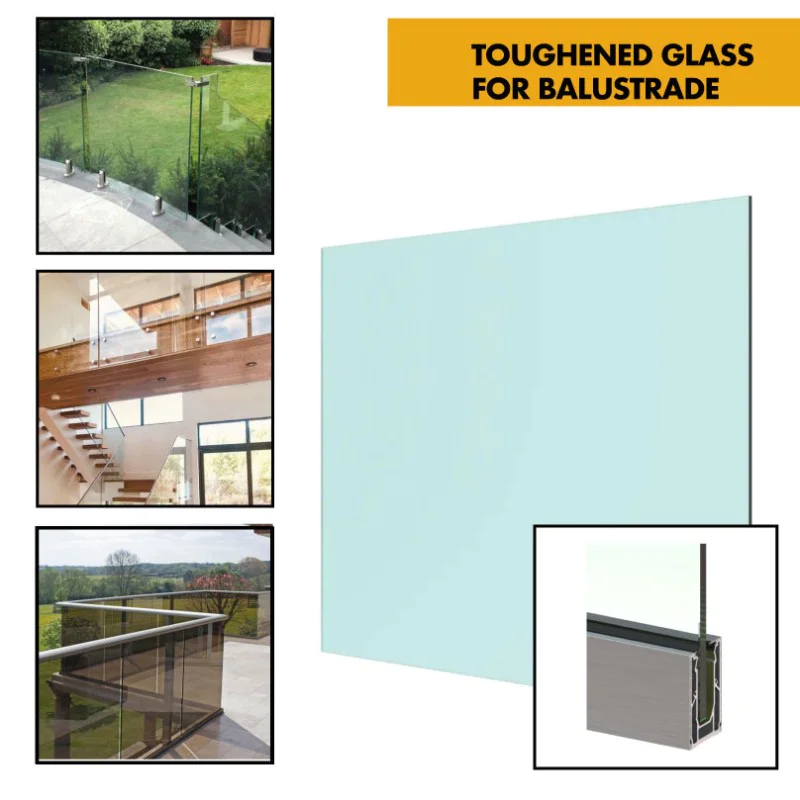

[10-16mm Toughened Glass] Low Iron Ultra Clear glass Toughened to BSEN 12150, Simply tighten hex grub screws to clamp down on the glass via rubber inserts to secure until firm. Suppled complete with all fixings. For specials such as 2m wide glass, different heights or Juliet balcony's - the hole/standoff requirement may vary - contact us for a bespoke quote.

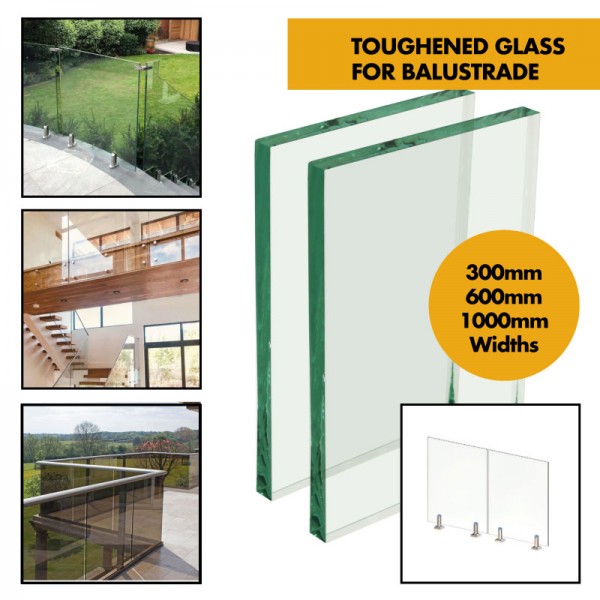

[Wide range of sizes to suit virtually any length run] Glass sizes 1100mm High x 300mm, 600mm or 1000mm wide allowing you to cover virtually any area with a combination of stock glass sizes - if you need a bespoke cut we can do it subject to a lead time

[Designed to 0.74kN/m according to BS6180:2011] suitable for for residential/domestic/home/office or areas not subject to overcrowding (Contact us for a quote for 1.5kN for areas where people may congregate/public walkways, retail, bars, restaurants etc under 3m or over 3.0kN for public/crowd loading areas over 3m wide ie. bars & Shopping malls, cinemas, sports arenas)

[Optional Stainless Steel Handrail/Capping Round Tubular Cover] Additional stainless steel handrail can be fitted to the top U shaped channel handrail c/w rubbers can be fitted to the top of the glass to finish or for walk way areas

Emphasis is made on ensuring the stainless is well cleaned before 'hand over' as it is likely that the surface has been contaminated during storage, fabrication and transporting. This is true regardless of which grade of stainless is chosen. Where 'rust' has appeared on the surface which is called 'tea staining', a mild acid cleaner such as white vinegar or a specialist stainless steel cleaner can be applied with a microfibre cloth. This information should be passed onto the end user to help avoid any complaints after installation.

Note - Cover is Stainless steel and requires specific angle grinder cutting blade to cut.
